RAM Mounts Twist Lock Suction Cup Mount

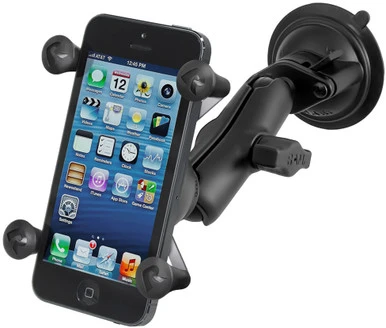

RAM Twist Lock Suction Cup Mount w/Universal X-Grip Cell Phone Holder

The RAM-B-166-UN7U consists of a 3.25″ twist lock suction cup base, double socket system and universal spring loaded X-Grip holder for cell phones. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect compliment to the modern sleek interior of today’s vehicles, the RAM X-Grip is the cell phone holder evolved.

Compatible Devices (WITH OR WITHOUT CASE):

• Apple iPhone 6
• Apple iPhone 5s
• Apple iPhone 5c
• Apple iPhone 5
• Apple iPhone 4
• Apple iPhone 4
• Apple iPhone 3GS
• Apple iPhone 3G
• Apple iPhone
• Apple iPod touch (All Models)
• Apple iPod (G1-G5)
• Samsung GALAXY S4
• Samsung GALAXY S5

The X-Grip holder is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Holder Dimensions:
Minimum Width = 1.875″
Maximum Width = 3.25″
Depth = 0.875″

Features:

1. Rustproof
2. High strength composite and stainless steel construction
3. Spring loaded holder expands and contracts for perfect fit of your device 4. Rubber coated tips will hold device firm and stable
5. Socket technology allows for multiple adjustment angles and articulation of device
6. Lifetime warranty
7. Made in U.S.A.

Material:
Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite

Ball Size:
1″ Rubber Ball “B” Size

Note:
The “U” in the part number reflects product packaged in poly bag.

---

Twist Lock Suction Cup Mount with Long Double Socket Arm & 2.5″ Round Base – AMPS Hole Pattern (9″ Length)

The RAM-B-166-C-202U consists of a 3.3″ suction cup twist lock base, long double socket arm and round base that contains the universal AMPs hole pattern. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1″ diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.

Overall Length:
9″

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1″ Rubber Ball “B” Size

Note:
The “U” in the part number reflects product packaged in poly bag. This mount does not require any drilling for installation.
